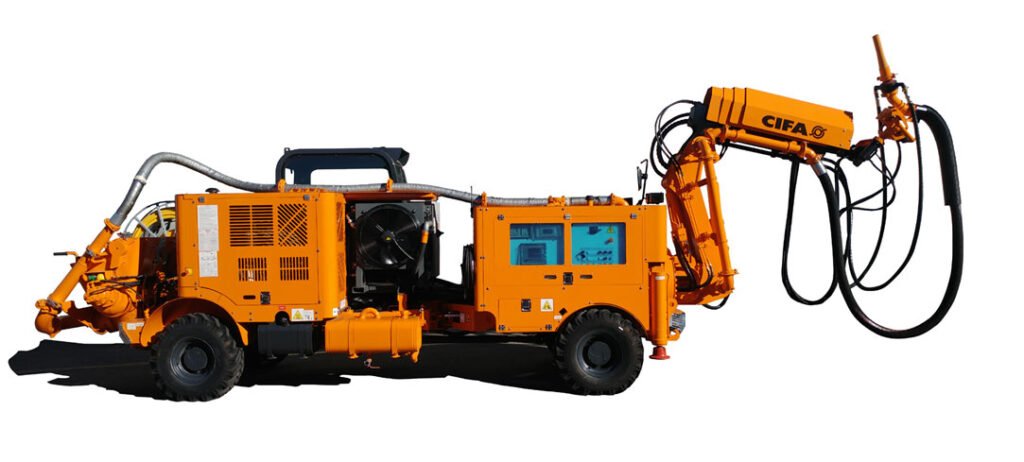

CSS-3 EVO

Diesel engine – D914L05 Step 3A, air cooled 72 kW – TCD3.6L04 Step 4F, liquid cooled 90 kW Driving cab FOPS certification reversible driving position Carrier chassis – 4 wheel drive – 4 wheel steering – axles planetary type, Dana Spicer – 2 speeds: 1st. gear max 8 km/h, 2nd gear max 26 km/h Uniflux H1.0 dosing system – Peristaltic pump with hydraulic drive ASP25 – Electronic management Concrete pump – Diesel and Electric operated – Proportional flow regulation – Electric vibrator fitted to the grid Proportional radio-remote control – n°2 transmitters – Safety cable Washing system: High pressure water pump, 50 l/min – 50 bar, Hydraulic drive, Nozzle and 10 m of pipe, Water tank 600 l, Handpump for concrete anti-adhesion protection Automatic lubrication in 8 points for: S valve, Pumping group mixer, Boom sliding turret and boom double trust block Electrical system – Carrier: 24 V, Battery 2 x 120 Ah, Alternator 55 A, Front lights 2 x 55 W, Rear lights 2 x 55 W – Shotcreting operations: Electric motor ABB 55kW IE3, Working lights N°6 x 45W-4800 lumen xenon, Working lights on hopper N°1 x 70W Nozzle brush movement One colour painting, RAL 2000

A brand new boom, designed and manufactured by CIFA and especially developed for mining and for small tunnels. Robust and at the same time versatile and extremely precise on nozzle placement, it has a vertical reach of 10 meters. A unique boom feature is that it can be unfolded and positioned in driving mode and once the machines has reached the work place. The boom has an horizontal slewing ring that allow the operator to follow the entire profile of the tunnel, at every height, with only one joystick movement on the proportional radio remote control.
Central articulated turning chassis has small width dimension and high manoeuvrability. High clearance on front and back allows it to face off-road surfaces and serious slopes with great agility. The driving seat can be turned 180°.
The boom, the chassis, the pumping unit and the additive dosing system UNIFLUX H1.0 are entirely designed, developed and manufactured by CIFA in order to ensure the best performance to our clients, on every jobsite.

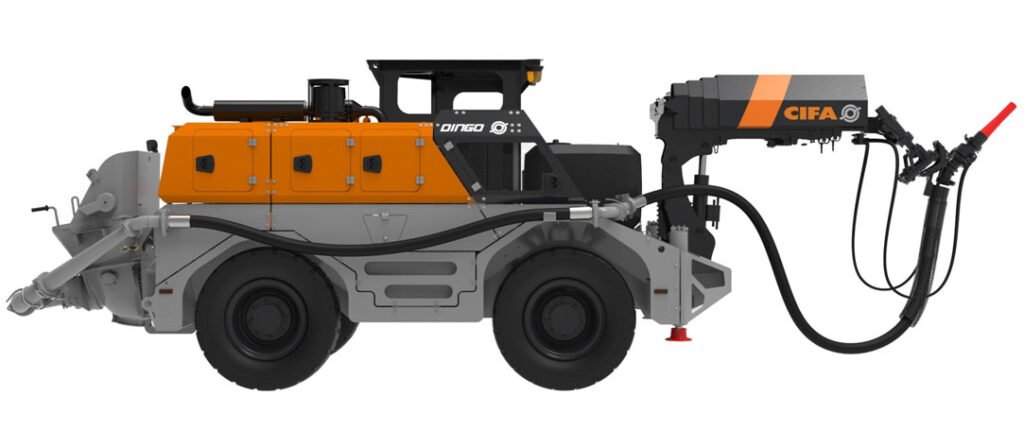

The Dingo is a compact, powerful and intelligent machine dedicated to mining and small tunnels.
It has an open transverse ROPS/FOPS driver’s seat, a wheelbase of only 2.2 metres and a height of 2.5 metres. It offers the useful haracteristic of driving while keeping the distribution boom within the machine shape by rotating it on the right side.

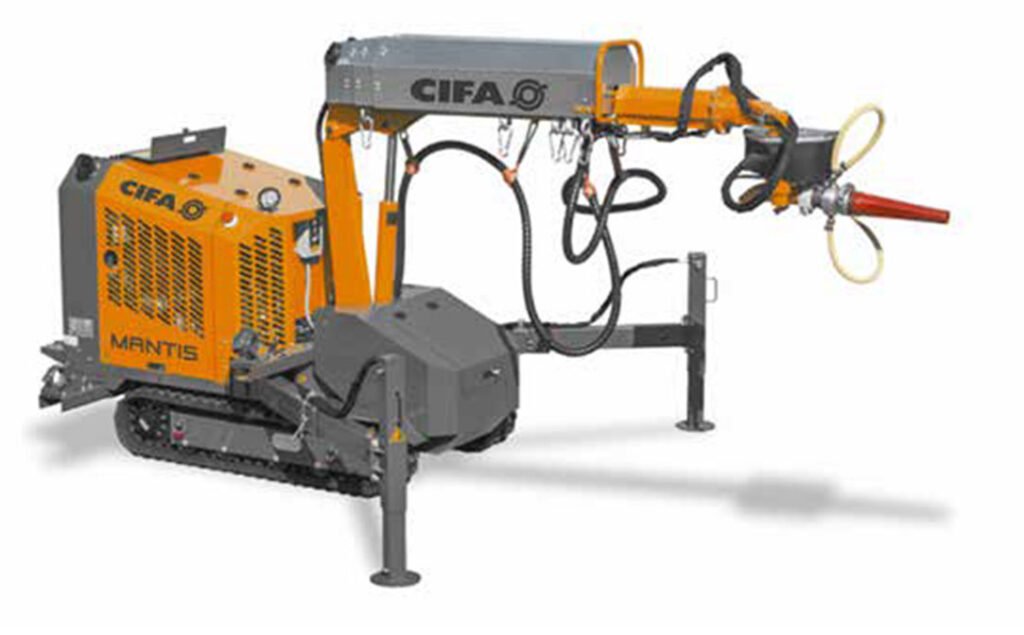

MANTIS is a tracked unit for spraying concrete ideal forunderground works or areas difficult to reach.
Equipped with a powerful crawler carrier, MANTIS is the best means to move in rugged and irregular work sites with total autonomy of movement. It can work either with the diesel engine or with the electric motor. This dual operation mode allows it to work even in areas with scarce power supply.
Thanks to the sturdy telescopic boom with 4 sections, long reach and compact design, MANTIS can be used either for dry or wet shotcrete. Two wide side doors make every component accessible for fast maintenance and control operations. The perfect addition to MANTIS are RHINO stationary concrete pumps.

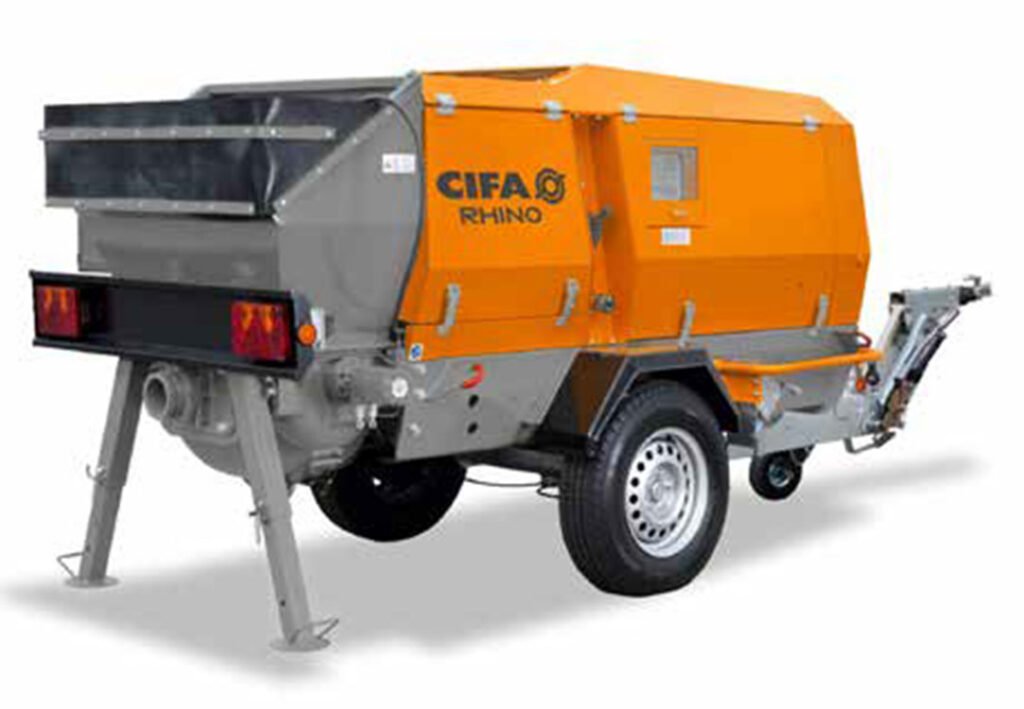

RHINO is a double piston pump with S-valve and variable output for shotcrete, micro-concrete, special concrete. RHINO is a reliable choice in tight jobsites. The trailer-built concrete spraying pump is designed for mechanized applications of wet shotcrete in combination with the MANTIS or for manual applications with a spraying nozzle.
