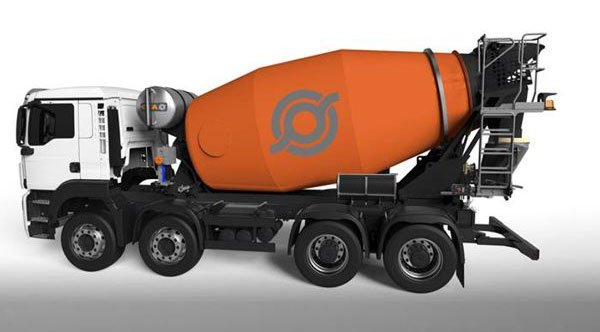

HD/HDA7
Drum
Nominal capacity: 7 m³
Geometric volume: 12.02 m³
Filling ratio: 62%
Water line: 7.5 m³
Rotation speed: 14 r.p.m.
Diameter: 2200 mm
Rollers: 1 + 1 n
Water pump output: 560 l/min
Water pump pressure: 4 bar
Water meter scale: 0 ÷ 500 l
Water tank capacity: 800 l
Driven by: P.T.O. / Separate engine
Dimension
A – min. length of frame: 5000 / 5400 mm
B – min. length of mixer: 6175 / 6575 mm
C – overhang: 1175 mm
G – center of gravity (empty): 2019 / 2282 mm
H – max. height: 2570 ÷ 2650 mm
Max width: 2355 mm
Total weight (empty)*: 4043 / 4460 Kg
Truck Specification: 3 Axles
* Weight may vary ±5% according to DIN 70200
Technical data and characteristics subject to modifications without notice

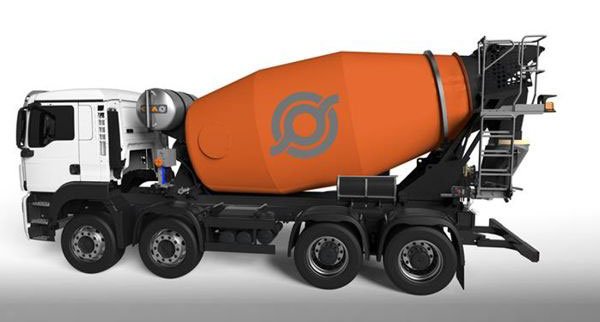

HD/HDA8
Drum
Nominal capacity: 8 m³
Geometric volume: 13.71 m³
Filling ratio: 58%
Water line: 9 m³
Rotation speed: 14 r.p.m.
Diameter: 2200 mm
Rollers: 1 + 1 n
Water pump output: 560 l/min
Water pump pressure: 4 bar
Water meter scale: 0 ÷ 500 l
Water tank capacity: 800 l
Driven by: P.T.O. / Separate engine
Dimension
A – min. length of frame: 5700 / 5900 mm
B – min. length of mixer: 6870 / 7070 mm
C – overhang: 1170 mm
G – center of gravity (empty): 2199 / 2491 mm
H – max. height: 2745 mm
Max width: 2345 mm
Total weight (empty)*: 4270 / 4750 Kg
Truck Specification: 3-4 Axles
* Weight may vary ±5% according to DIN 70200
Technical data and characteristics subject to modifications without notice

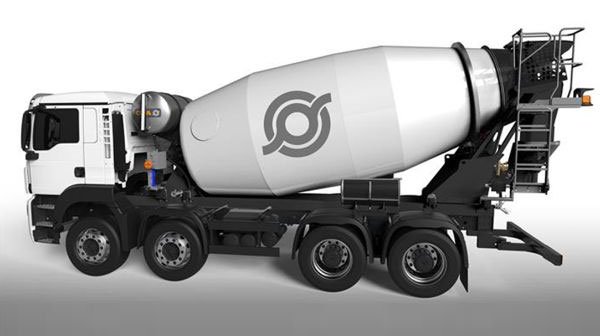

HD/HDA9
Drum
Nominal capacity: 9 m³
Geometric volume: 16.01 m³
Filling ratio: 56%
Water line: 10 m³
Rotation speed: 14 r.p.m.
Diameter: 2350 mm
Rollers: 2 + 2 n
Water pump output: 560 l/min
Water pump pressure: 4 bar
Water meter scale: 0 ÷ 500 l
Water tank capacity: 800 l
Driven by: P.T.O. / Separate engine
Dimension
A – min. length of frame: 6100 / 6300 mm
B – min. length of mixer: 7300 / 7500 mm
C – overhang: 1175 mm
G – center of gravity (empty): 2445 / 2770 mm
H – max. height: 2750 mm
Max width: 2440 mm
Total weight (empty)*: 4780 / 5334 Kg
Truck Specification: 3-4 Axles
* Weight may vary ±5% according to DIN 70200
Technical data and characteristics subject to modifications without notice

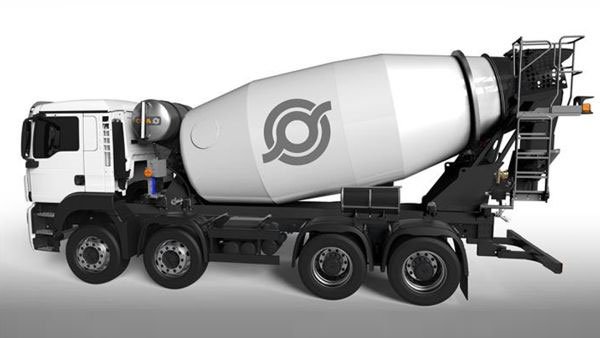

HD/HDA10
Drum
Nominal capacity: 10 m³
Geometric volume: 17.02 m³
Filling ratio: 58%
Water line: 11.1 m³
Rotation speed: 14 r.p.m.
Diameter: 2350 mm
Rollers: 2 + 2 n
Water pump output: 560 l/min
Water pump pressure: 4 bar
Water meter scale: 0 ÷ 500 l
Water tank capacity: 800 l
Driven by: P.T.O. / Separate engine
Dimension
A – min. length of frame: 6500 / 6700 mm
B – min. length of mixer: 7700 / 7900 mm
C – overhang: 1214 mm
G – center of gravity (empty): 2551 / 2876 mm
H – max. height: 2750 mm
Max width: 2440 mm
Total weight (empty)*: 4980 / 5534 Kg
Truck Specification: 3-4 Axles
* Weight may vary ±5% according to DIN 70200
Technical data and characteristics subject to modifications without notice

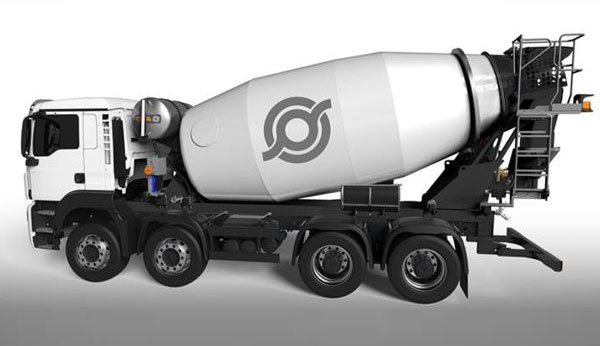

HD12+
Drum
Nominal capacity: 12 m³
Geometric volume: 20.2 m³
Filling ratio: 59.5% Water line: 13.21 m³
Rotation speed: 14 r.p.m.
Diameter: 2350 mm
Rollers: 2 + 2 n
Water pump output: 560 l/min
Water pump pressure: 4 bar
Water meter scale: 0 ÷ 500 l
Water tank capacity: 1200 l
Driven by: P.T.O.
Dimension
A – min. length of frame: 6935 mm
B – min. length of mixer: 8170 mm
C – overhang: 1200 mm
G – center of gravity (empty): 2940 mm
H – max. height: 2800 mm
Max width: 2440 mm
Total weight (empty)*: 5490 Kg
Truck Specification: 4 Axles
* Weight may vary ±5% according to DIN 70200
Technical data and characteristics subject to modifications without notice

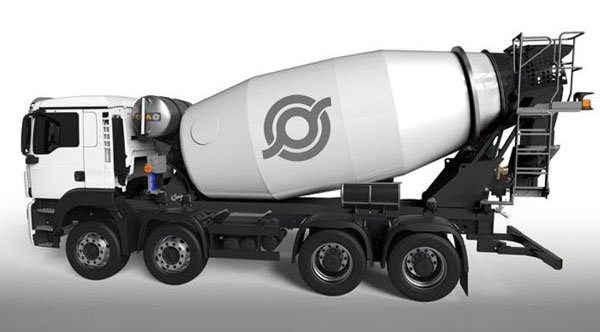

HD15
Drum
Nominal capacity: 15 m³
Geometric volume: 23.75 m³
Filling ratio: 63%
Water line: 15.9 m³
Rotation speed: 14 r.p.m.
Diameter: 2400 mm
Rollers: 2 + 2 n
Water pump output: 560 l/min
Water pump pressure: 4 bar
Water meter scale: 0 ÷ 500 l
Water tank capacity: 1200 l
Driven by: P.T.O.
Dimension
A – min. length of frame: 7060 mm
B – min. length of mixer: 8600 mm
C – overhang: 1535mm
G – center of gravity (empty): 2822 mm
H – max. height: 2705 mm
Max width: 2500 mm
Total weight (empty)*: 5910 Kg
Truck Specification: 4-5 Axles
* Weight may vary ±5% according to DIN 70200
Technical data and characteristics subject to modifications without notice
